Technical Component Specification: Data Archive

Overview

The data archive component and architecture is meant to provide a way to maintain database performance, while retaining data in a long-term storage solution. Importantly, Scouter focuses on providing real-time monitoring capabilities and alerting. And while most of this relies on having short-term data (defined as 60 days), there are some use cases where a user may want to visualize or audit data from longer periods of time. This component is meant to provide a way to do that.

TLDR: Scouter deletes all records > 60 days old in order to maintain database performance, so we need a retention strategy for expired data in the event a user needs access to it.

How it works

ScouterServerConfig will now load a default ObjectStorageSettings struct on startup. This struct serves as a configuration for the object storage provider.

pub struct ObjectStorageSettings {
    pub storage_uri: String,
    pub storage_type: StorageType,
    pub region: String, // this is aws specific
}

Accepted environment variables are: - SCOUTER_STORAGE_URI: The URI for the object storage provider. This must be one of the following: - s3://<bucket-name> for AWS S3 - gs://<bucket-name> for Google Cloud Storage - az://<container-name> for Azure Blob Storage - ./scouter-storage for local storage (default if not set)

• AWS_REGION: The AWS region for the object storage provider. This is only required if the SCOUTER_STORAGE_URI is set to s3://<bucket-name>. It defaults to us-east-1 if not set.

In addition to ObjectStorageSettings, DatabaseSettings now takes on an additional environment variable DATA_RETENTION_PERIOD which indicates how long data should be retained in the database before moving it to long-term storage. Note this is only for copying data to long-term storage. The actual deletion of data is still handled by pgCron. The default value is 60 days.

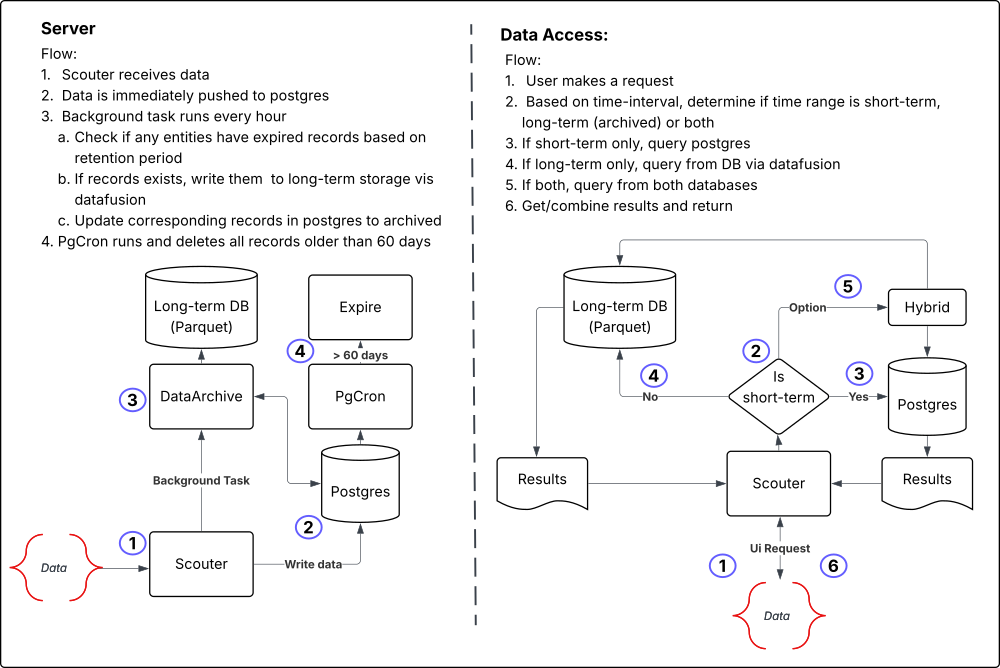

Component Architecture

Implementation Details

The data archive component itself is comprised of a few key parts:

1. Scouter Dataframe: This is a crate that defines the arrow datafusion, parquet and object store interfaces for reading and writing data to an from long-term storage. It also contains drift-specific logic that is implement via traits.

Primary Interface

pub enum ParquetDataFrame {
   CustomMetric(CustomMetricDataFrame),
   Psi(PsiDataFrame),
   Spc(SpcDataFrame),
}

The ParquetDataFrame enum is the primary interface for the data archive component. It allows for different types of data frames to be handled in a uniform way. Each variant of the enum corresponds to a specific type of data frame, such as CustomMetric, Psi, or Spc.

It's primary methods for reading and writing data are:

pub async fn write_parquet(
   &self,
   rpath: &str,
   records: ServerRecords,
) -> Result<(), DataFrameError>

pub async fn get_binned_metrics(
   &self,
   path: &str,
   bin: &f64,
   start_time: &DateTime<Utc>,
   end_time: &DateTime<Utc>,
   space: &str,
   name: &str,
   version: &str,
) -> Result<DataFrame, DataFrameError>

1. Scouter Server DataArchiver: Upon startup, the Scouter server will create a DataArchiver instance and start a background worker that will run every hour. This worker will check for any expired data in the database and move it to long-term storage. The DataArchiver will use the ParquetDataFrame interface to read and write data.

pub async fn setup_background_data_archive_workers(
    db_pool: &Pool<Postgres>,
    config: &Arc<ScouterServerConfig>,
    shutdown_rx: tokio::sync::watch::Receiver<()>,
) -> AnyhowResult<()> {
    DataArchiver::start_workers(db_pool, shutdown_rx, config).await?;
    info!("✅ Started data archive workers");
    Ok(())
}

The primary method for the background worker is archive_expired_data, which will check for any expired data in the database and move it to long-term storage. It iterates over each drift type and processes records according to their trait implementations.

pub async fn archive_old_data(
    db_pool: &Pool<Postgres>,
    config: &Arc<ScouterServerConfig>,
) -> Result<ArchiveRecord, ServerError>

async fn process_record_type(
    db_pool: &Pool<Postgres>,
    record_type: &RecordType,
    config: &Arc<ScouterServerConfig>,
) -> Result<bool, ServerError>

async fn get_entities_to_archive(
    db_pool: &Pool<Postgres>,
    record_type: &RecordType,
    retention_period: &i32,
) -> Result<Vec<Entity>, ServerError>

async fn get_data_to_archive(
    tx: &mut Transaction<'_, Postgres>,
    record_type: &RecordType,
    entity: &Entity,
) -> Result<ServerRecords, ServerError>

async fn update_entities_to_archived(
    tx: &mut Transaction<'_, Postgres>,
    record_type: &RecordType,
    entity: &Entity,
) -> Result<(), ServerError>`

Dependencies

• Primary External Crates
• arrow-array
• datafusion
• object_store
• parquet

Performance Considerations

1. Asynchronous Processing
2. Non-blocking
3. Async database operations

---

Version: 1.0
Last Updated: 2025-04-23
Component Owner: Steven Forrester
